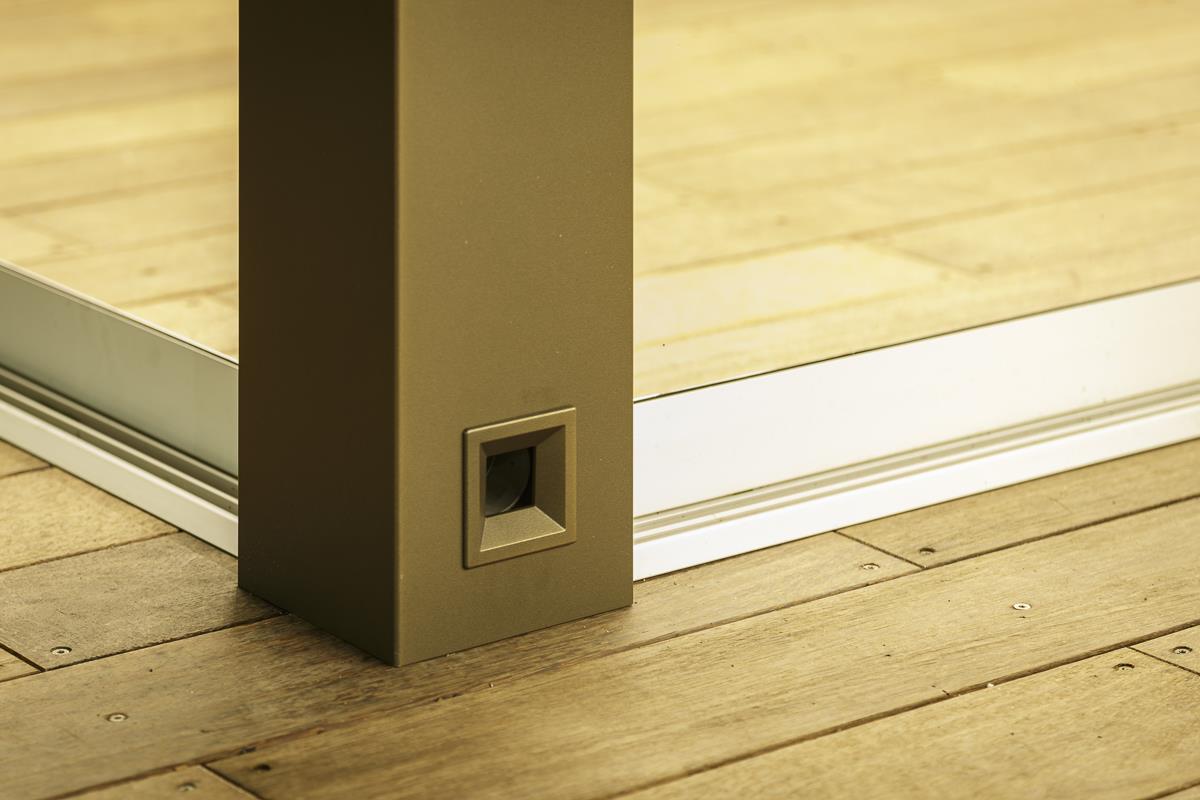

With a cross-section of 15 x 15 cm, the pillars were designed to accommodate both a downpipe that directs the drainage of water and side runners of screens, for a maximum encumbrance of 33 x 33 mm.
The 15 x 25 cm beams are also designed to incorporate runners for sliding glass doors and the retractable canvas of vertical closures, concealing any discontinuity from view.

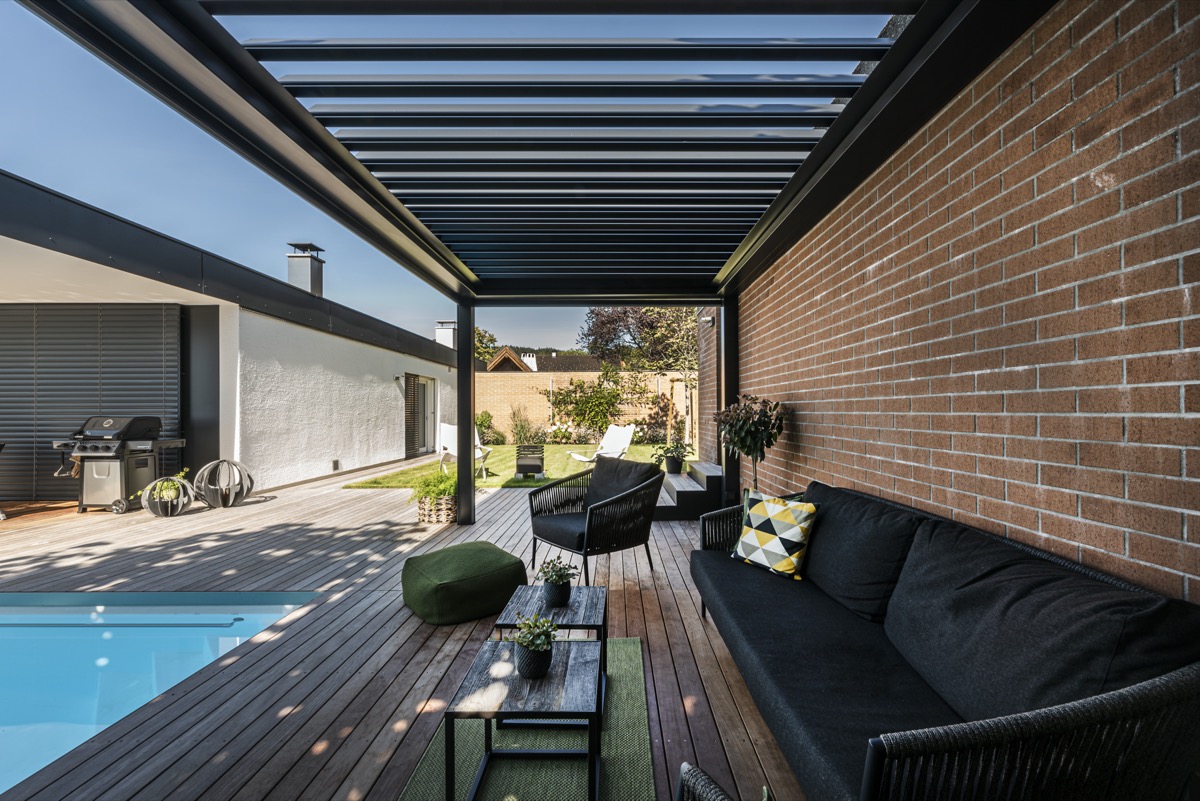

Indeed, the blades’ controls are also situated on the inside of the beam to protect the motorised drive mechanism, maximising aesthetics and practicality. The blades have been completely redesigned to mesh better with the simple continuity of the lines. In fact, they are flat, measure 24,5 by 4,8 cm (space between blades 21,5 cm) and can accommodate dimming LED lights, perfectly centred with respect to the blade width.

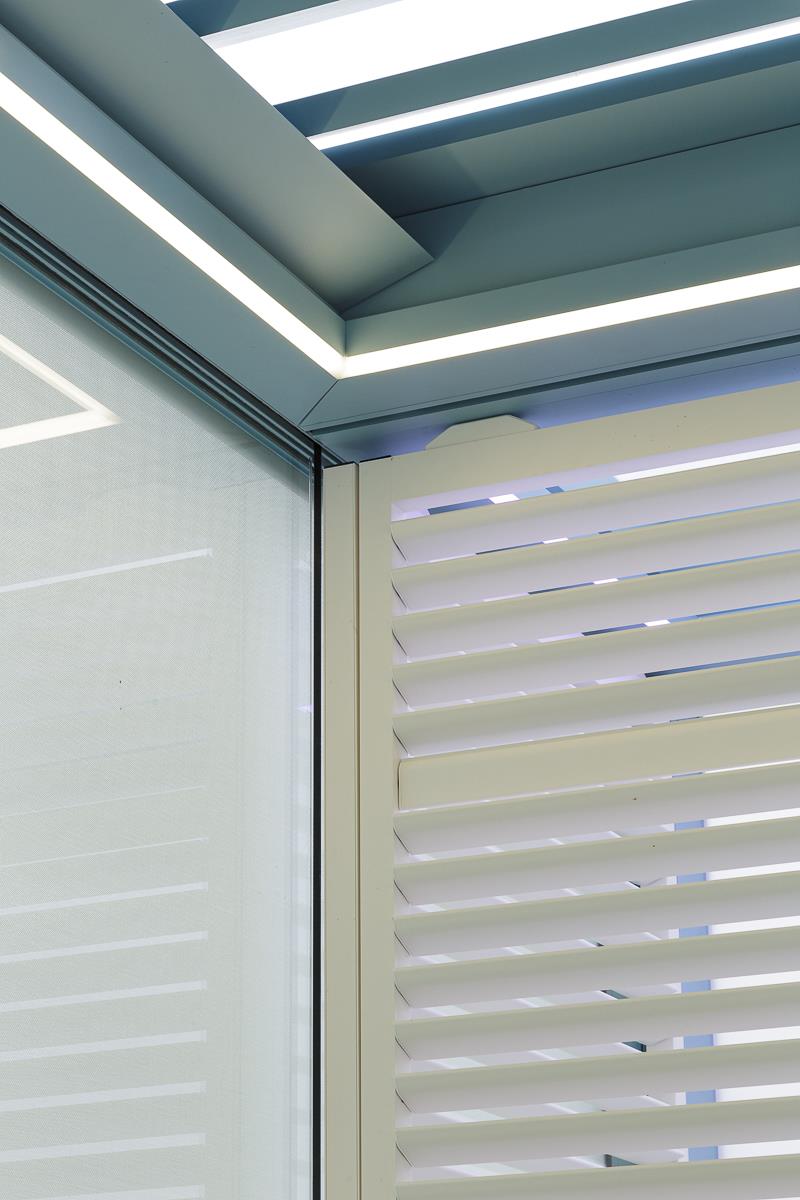

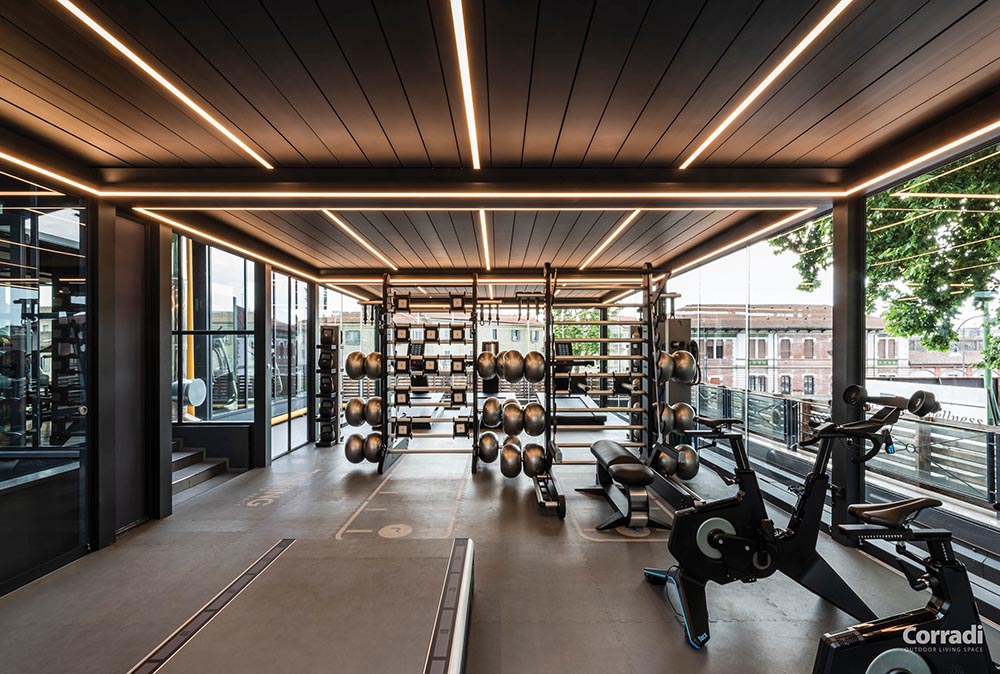

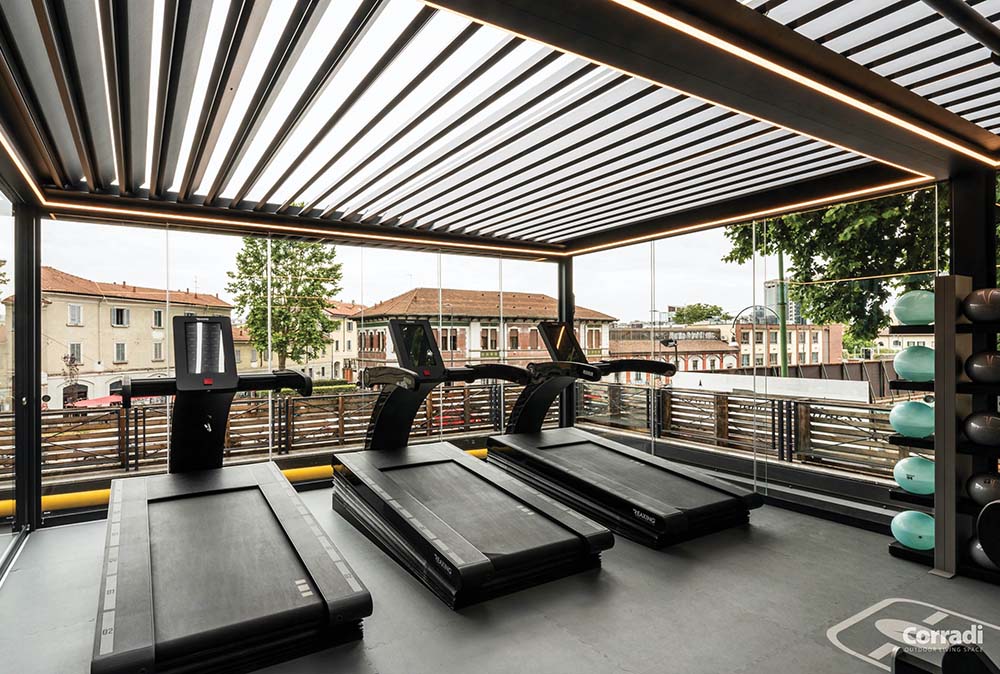

The gutter gives the possibility of incorporating LED lights throughout the entire internal perimeter to create a modular, effective and particularly pleasant lighting system.
The particular geometry of the beams and pillars means that Imago®’s external skin can be completely different in colour from the interior for an original, welcoming bi-color effect.
Imago® also shows off its superior level of integration and flexibility with its many configurations of side closures:

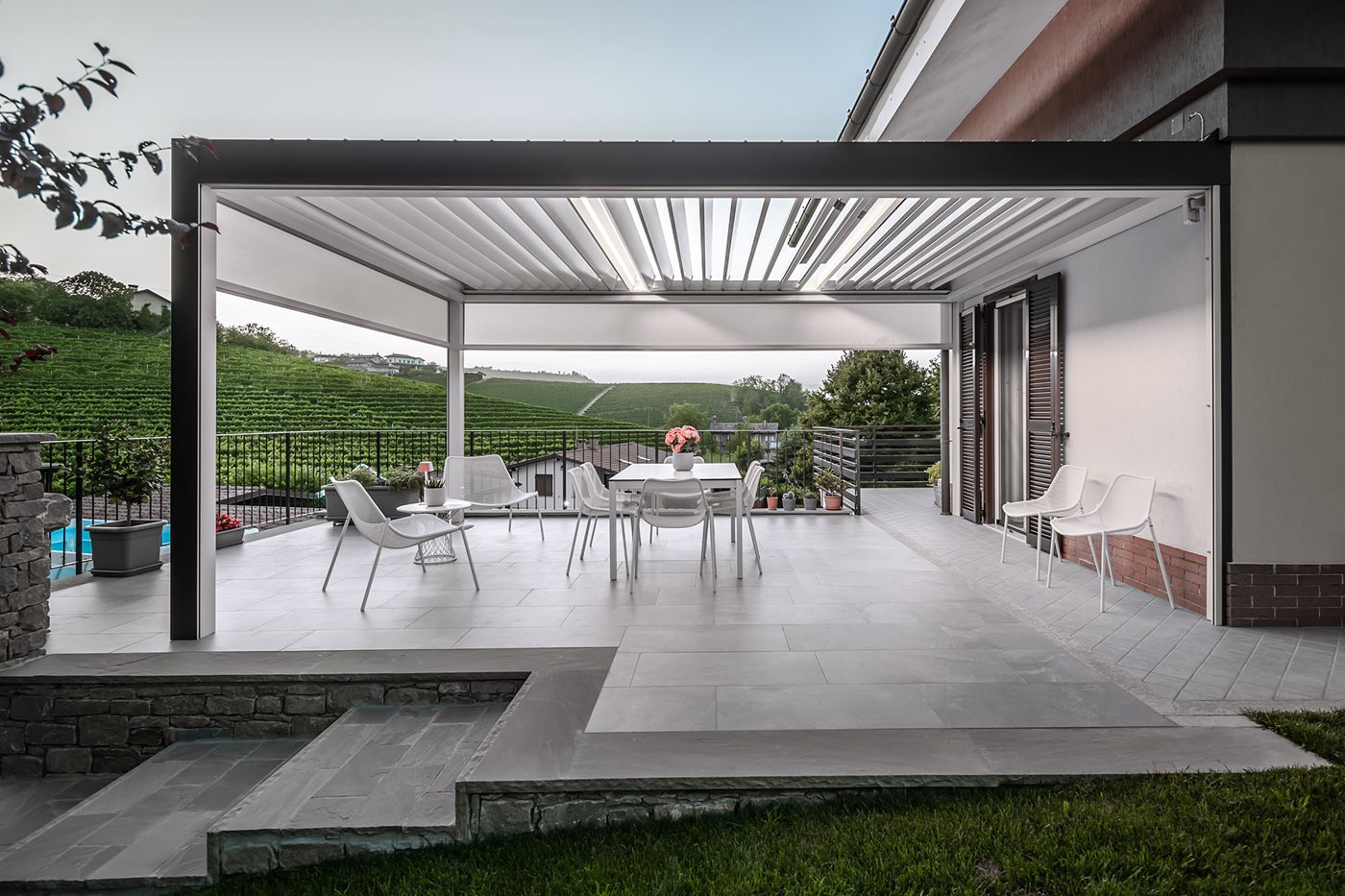

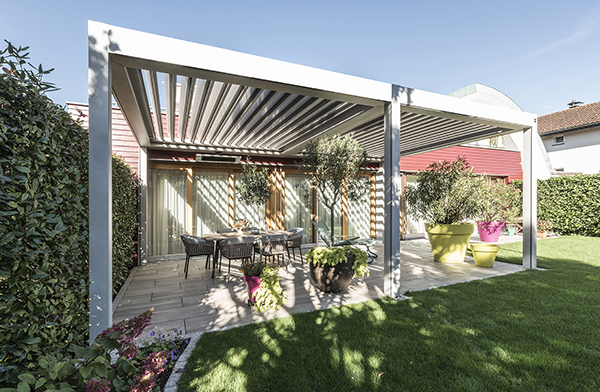

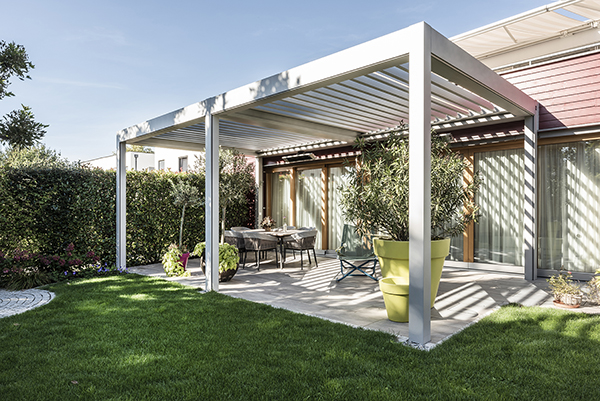

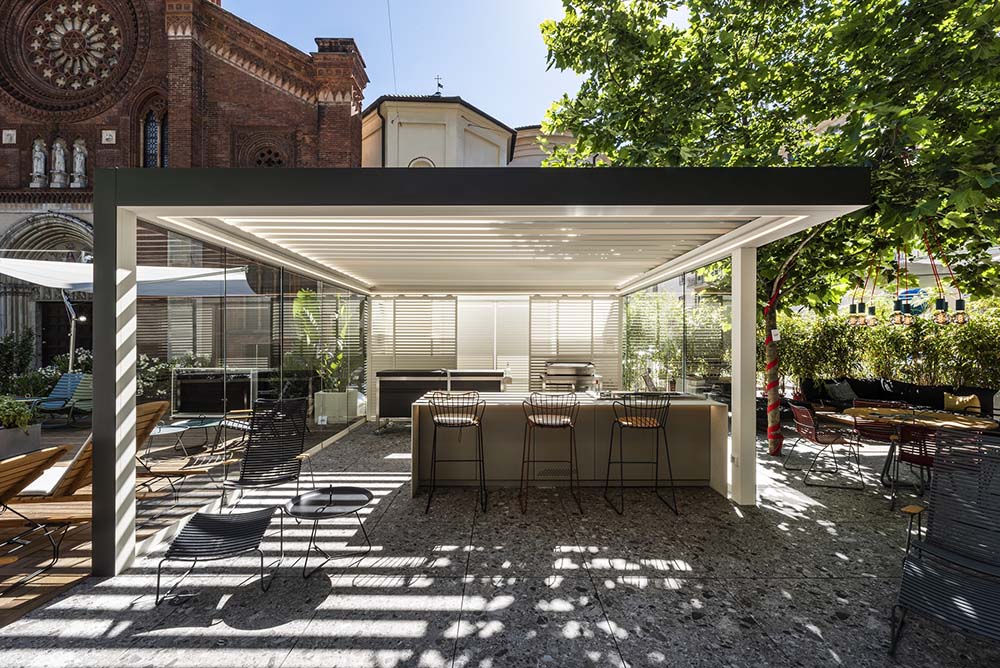

- Fully open on the sides for total permeability

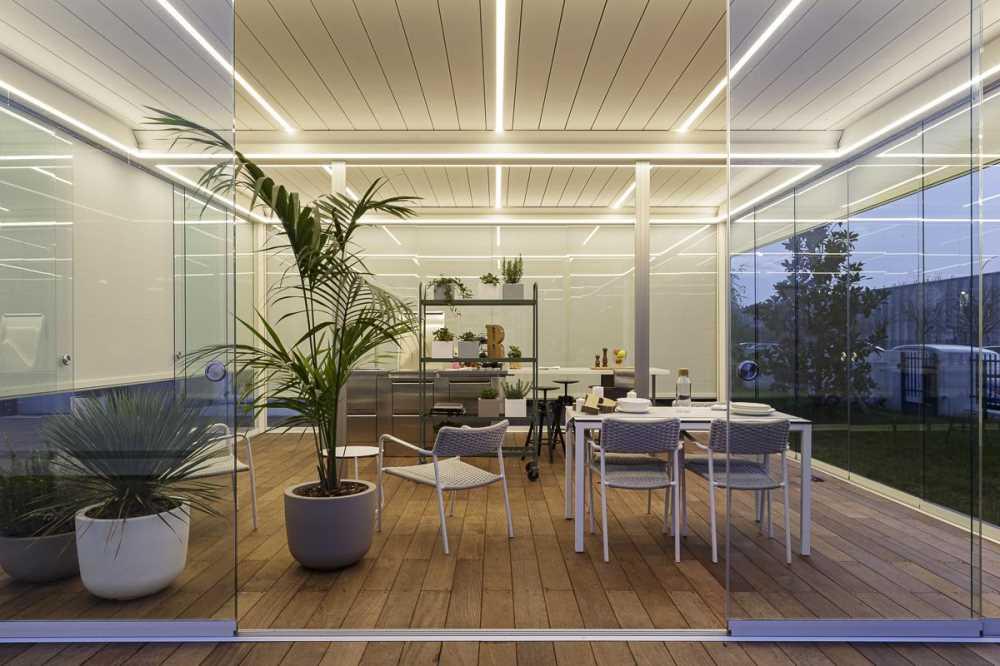

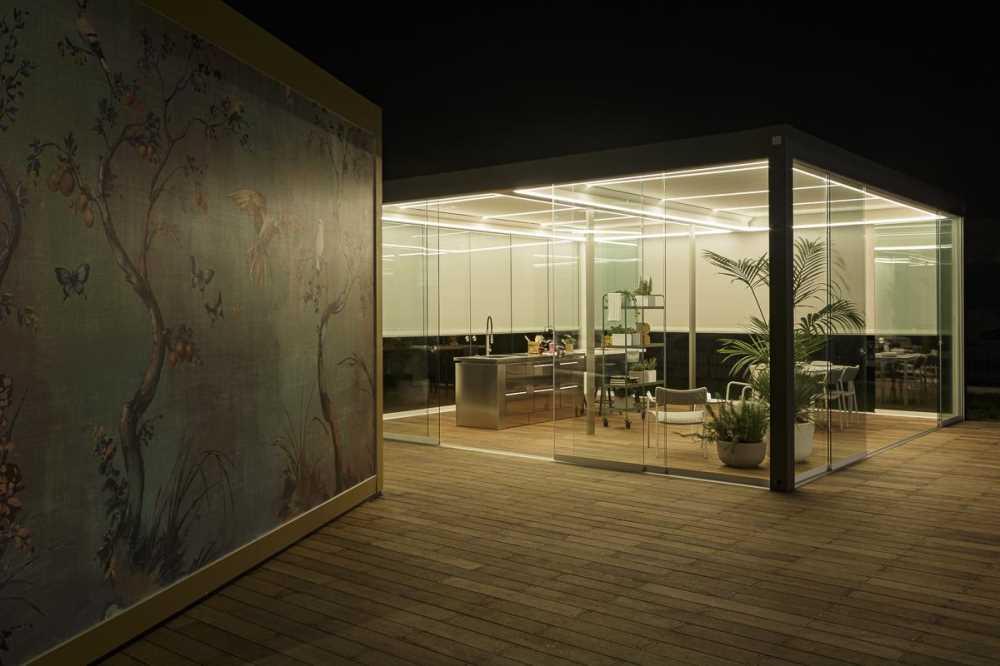

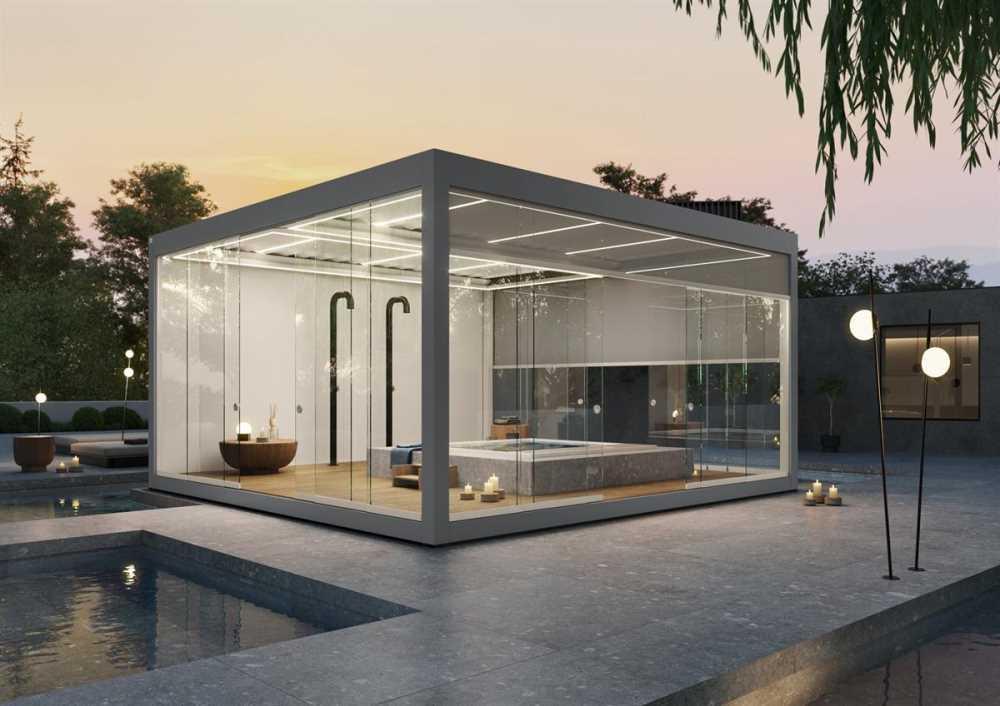

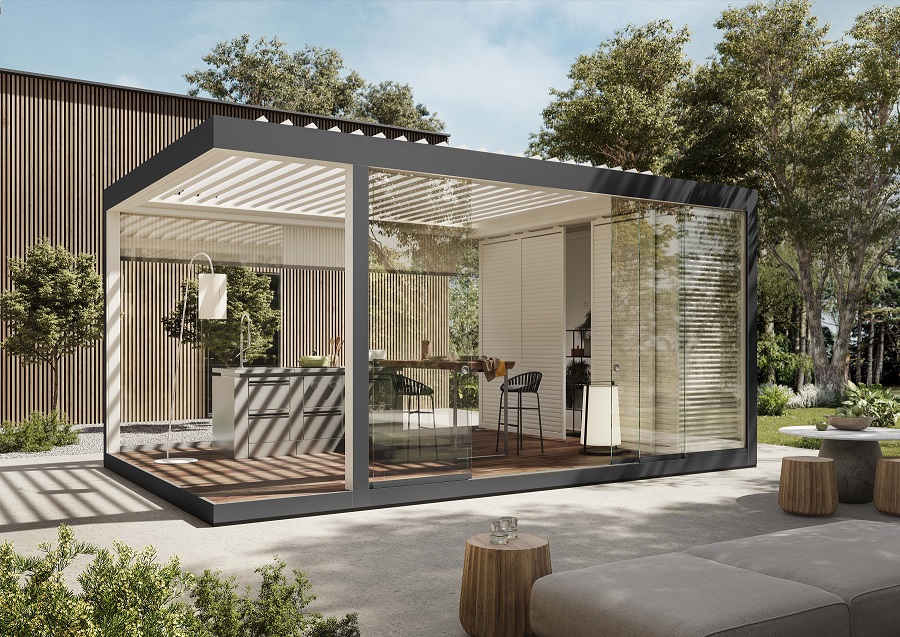

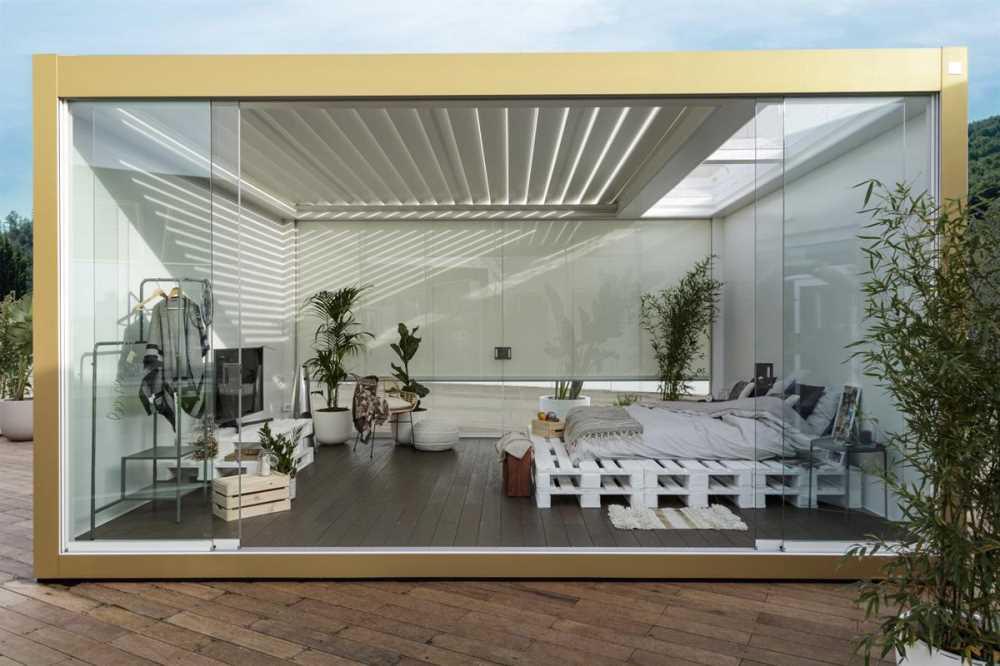

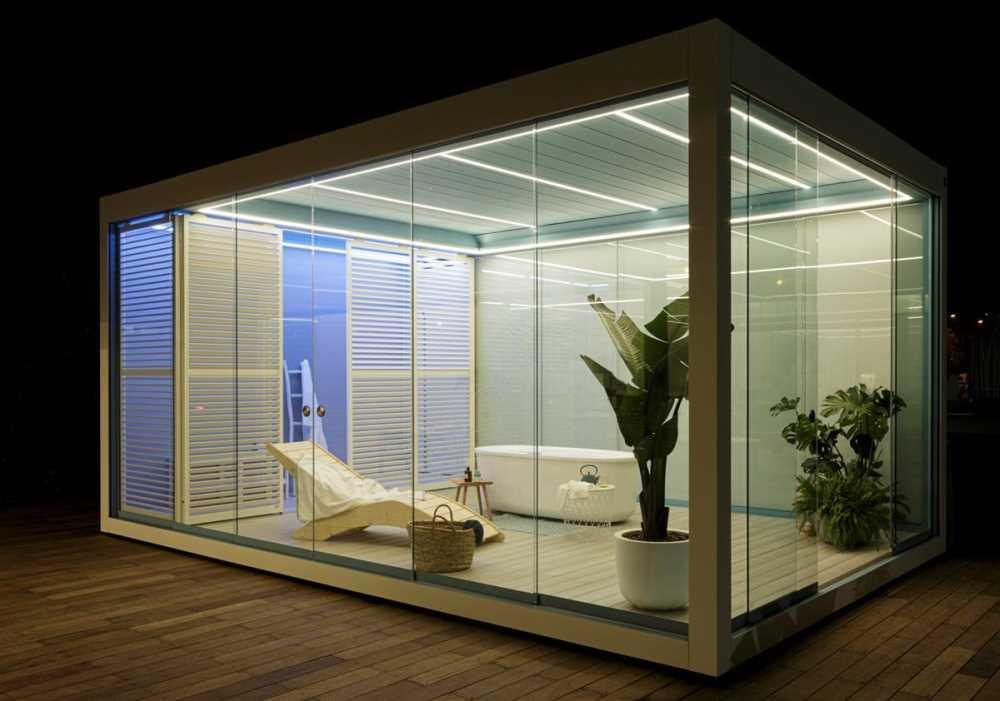

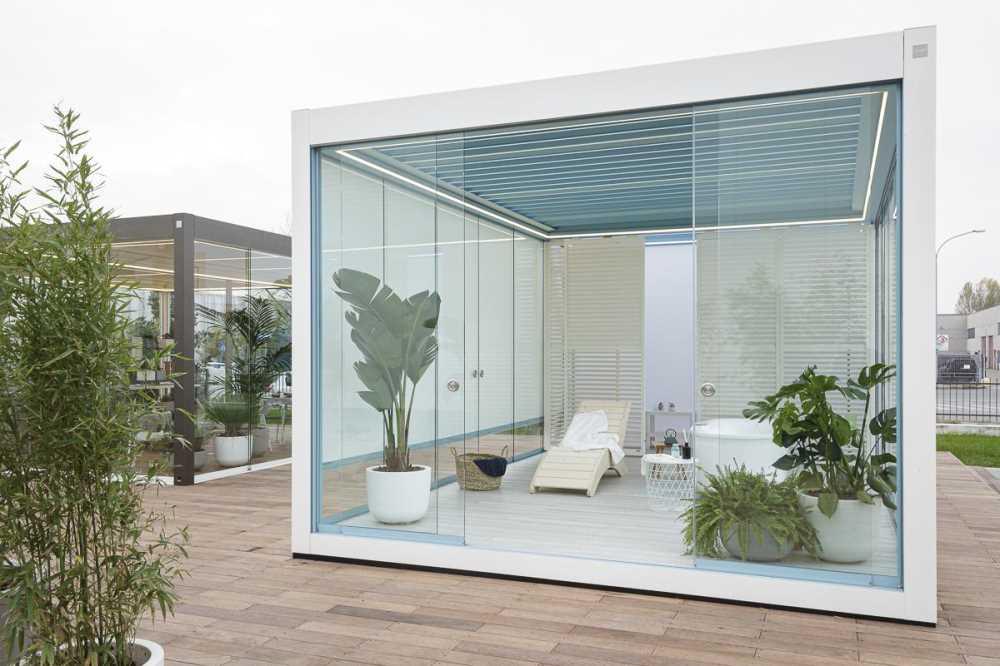

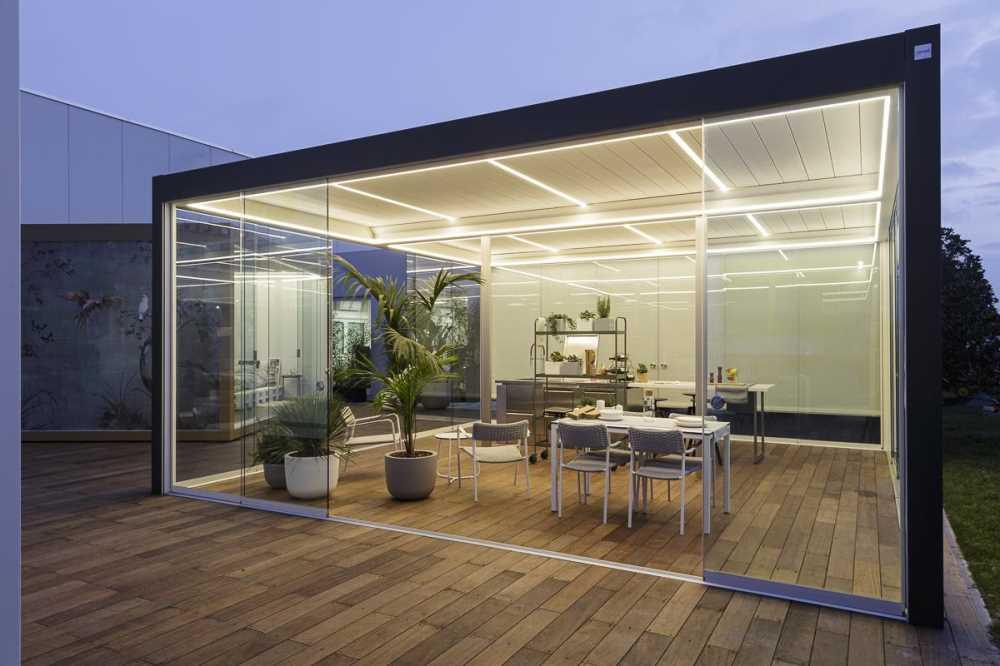

- Closed with sliding glass doors
- Closed with Aura brise-soleil

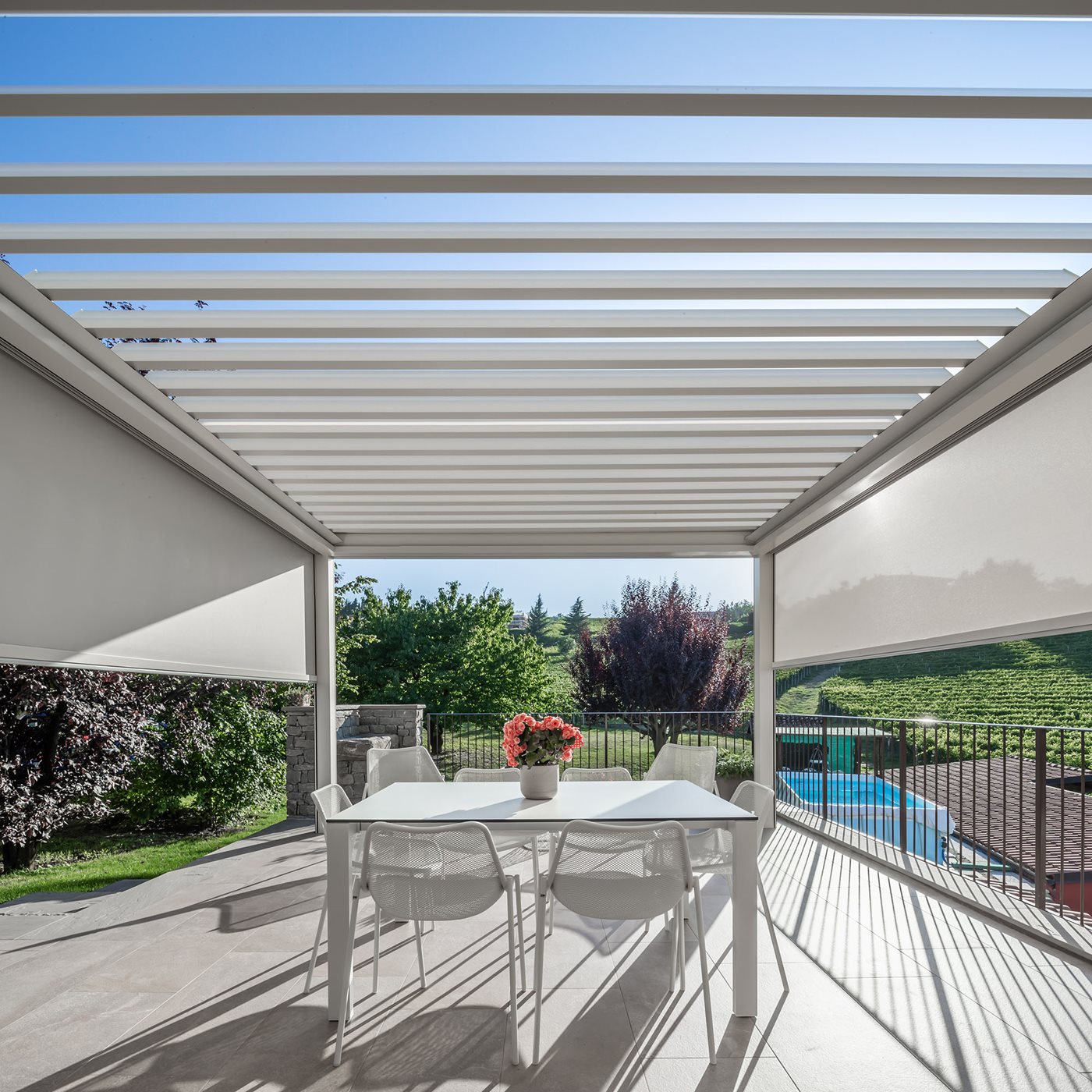

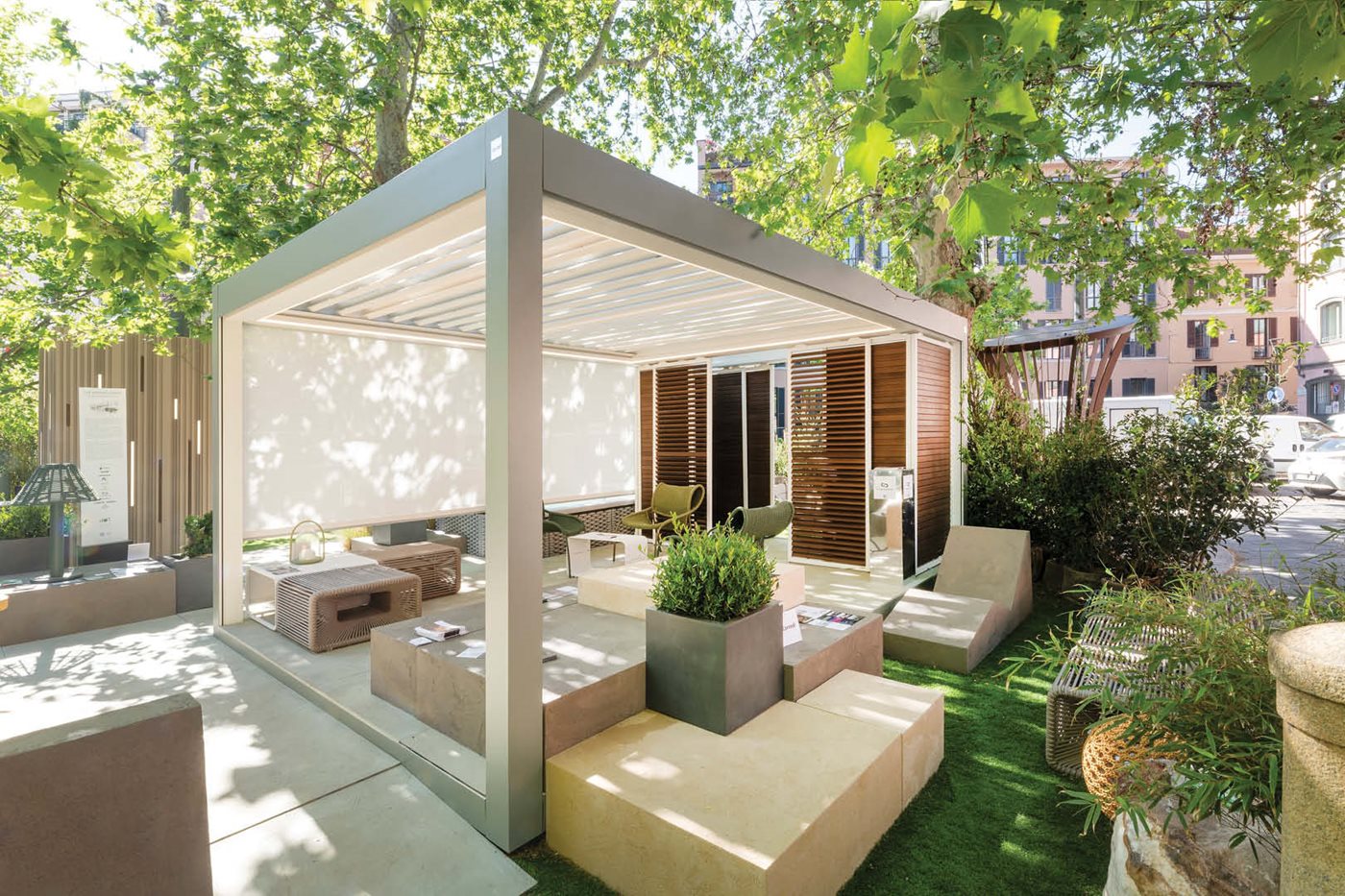

- Closed with vertical screen with transparent, filtering or shuttering canvas
- Dual closure, with glasses and vertical screens

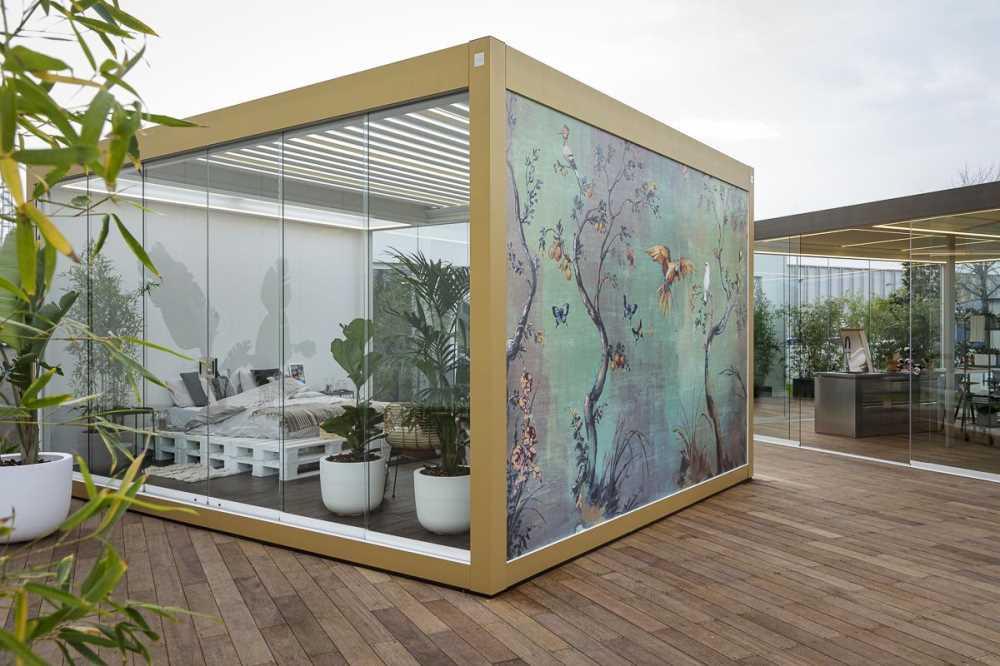

- Closed using fixed panels

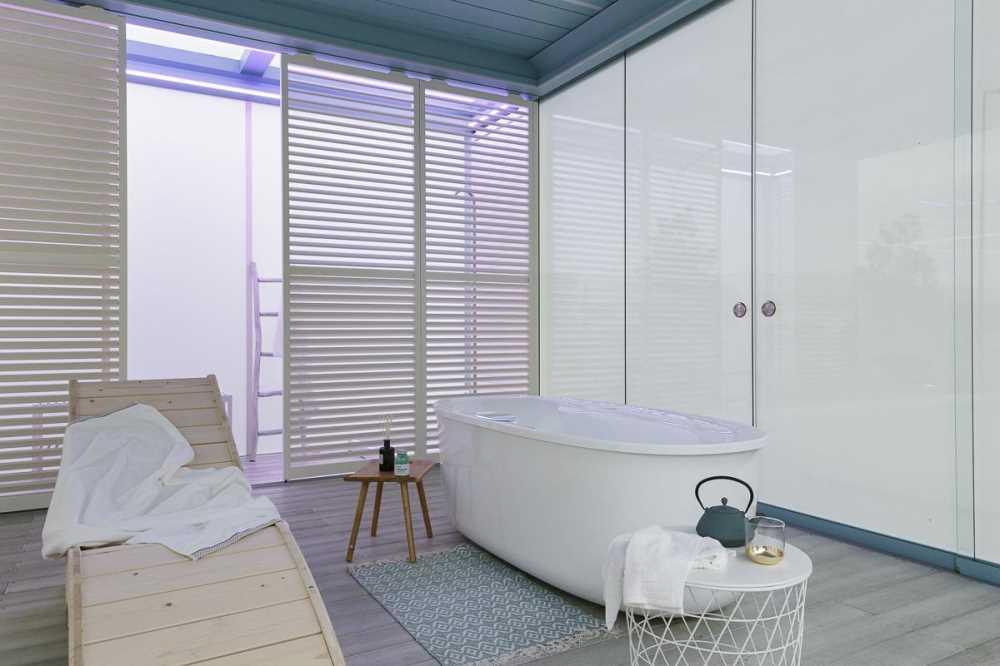

Imago®’s interior spaces can be modulated according to the function they’re designed for, also thanks to the Private module*, a private corner that can be used as a dressing room, storage for chairs and sunbeds, wardrobe, table settings and so on.

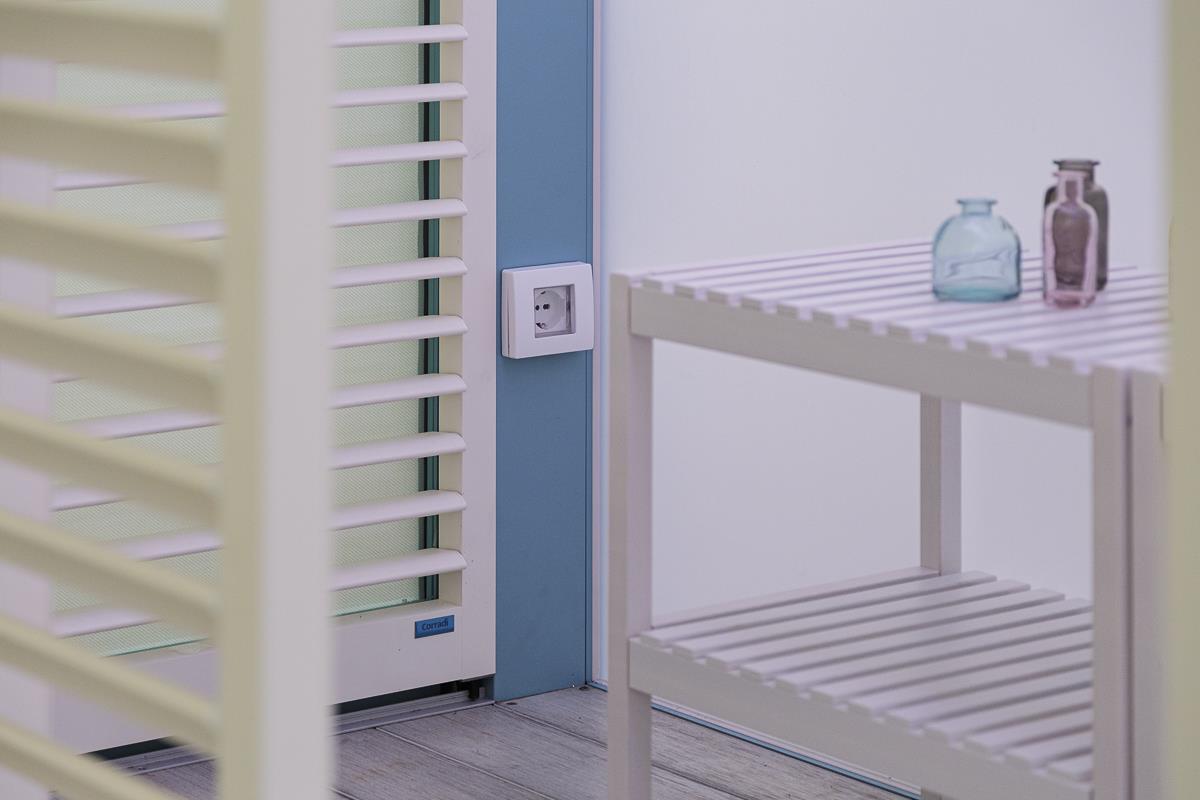

The Closet module consists of a partition of fixed and sliding brise-soleil panels secured to an additional intermediate beam.
To complete the optional components that make Imago® a self-sufficient pavilion, we have developed a new 17,5 cm high platform that can compensate for differences in height, which can be combined with different types of walking surfaces. On request, Imago is also available without a platform, with the possibility of draining rainwater on all sides.
Imago® is pre-wired with a Master motor (Somfy optional).
